PKP-3500-SI-MT is a new direction in CANbus keypads. This all new design comes equipped with thirteen push buttons with replaceable icon inserts, plus two rotary encoders that are also push enabled. Thanks to four additional analog and digital inputs, it is possible to connect 5V sensors directly to the CANbus network through the keypad. The compact layout and inclusion of the rotary encoders allows for significant dash space saving while expanding the functionality of the vehicle.

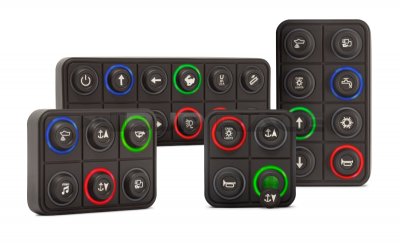

Introducing the PKP-SI series of CAN-bus Keypads from Blink Marine. The PKP-SI series keypads offer removable inserts, coloured LED button indicators and backlight, and a rugged IP67 rated waterproof design. The Blink Marine Keypads work seamlessly with the CAN-bus enabled versions of the Hardwire Electronics PDMs, and offer a fantastic way to control PDM outputs. The Keypad Switch illumination LEDs operate in the following modes

Green – Output is on and functioning normally

Blue – Output under-current fault has occurred

Red – Output over-current fault has occurred

Deutsch conector included.
Icons are sold separately.
CAN bus Baud Rate is default: 125kbps
Keypad ID is the default: ID 0x15
If you want another Baud Rate or address, it is possible to reprogram.
Contact us and we can do it.

We currently have 50s icons in stock. But we can take home all the icons that Blink Marine makes.

Technical Specification

• IP67/IP69K Waterproof Rating
• UV protection
• Vertical or Horizontal Mounting
• Reconfigurable Icon Inserts
• LED Backlit keys
• Global Backlight
• -40°C to +70°C Operating Temperature
• #10-32 Steel Mounting Studs
• 300g Weight
• High Chemical Resistance
