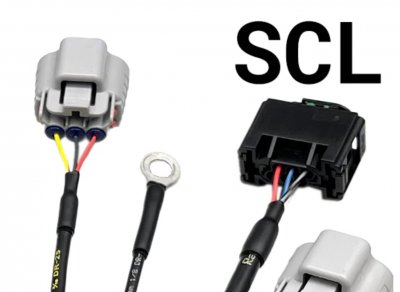

Raychem SCL is a Semi-Rigid 3:1 encapsulant-lined, heat-shrinkable tubing SCL is encapsulant-lined, heat-shrinkable tubing that provides moisture resistance, strain relief, and electrical insulation for electrical splices, terminations, breakouts, and mechanical connections. SCL is constructed as a dual-wall tubing. The outer wall is a semi-rigid, crosslinked polyolefin, while the inner wall is a meltable polyolefin that flows with the application of heat.

Heating SCL shrinks the outer jacket and melts the inner encapsulant wall to flow and fill surface irregularities. While hot, the tubing can be pinched and blocked to form a wire breakout. SCL provides a splash-resistant, moisture-resistant covering suitable for many applications. SCL also performs satisfactorily if briefly exposed to common solvents or chemicals. The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of SCL tubing.

Specifications

• Inner dimension 6,4mm before shrinking. 2mm after shrinking
• Length 30cm
• Full recovery temperature 135ºC
• Continuous operating temperature: 55ºC to 110ºC
• UL: E85381
• Military: AMS-DTL-23053/4 Class 1
• Shrink Ratio: 3:1
